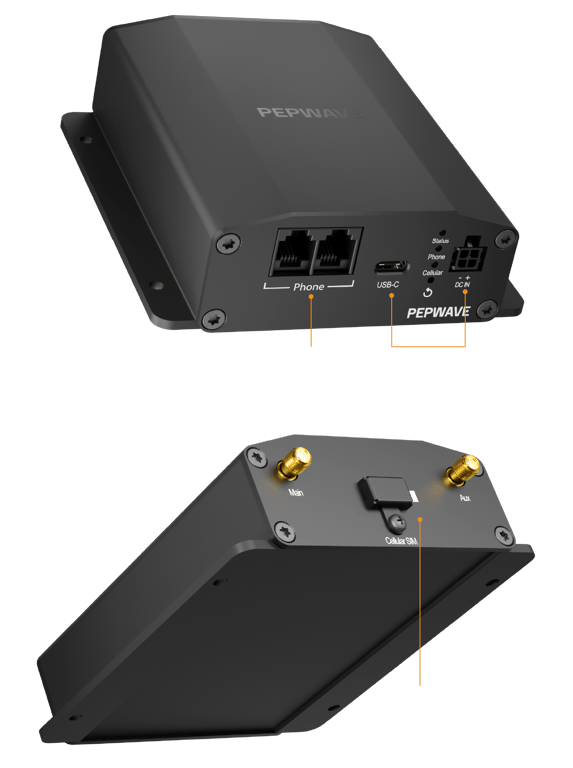

POTS Adapter
Feature Highlights
Plug and Play
Drop in Pepwave’s POTS to Cellular Adapter to update your legacy analog phone line connections to cellular. Requires only a power source and cellular network signal.
Certified for Industrial and Commercial Applications
Alarm systems, elevators, remote door/gate systems and other legacy applications utilizing analog phone lines. Rugged, low power consumption and operates across wide temperature range.
Reliable and Cost Effective
Deploys standalone, no additional network equipment or setup required. Complete central management and alerting through Peplink InControl2 reduces deployment and troubleshooting costs.
Featured Solutions
Smart Cities
IoT
Industrial
Resources
Specification Details
| WAN Interface | 1x LTE Embedded Cellular Modem |
| Configuration Interface | USB-C Port |
| POTS line | Up to 3 REN Line Load; 55 Vrms Ring Voltage; 500ft Loop Length Support |
| Antenna Connectors | 2x SMA Cellular Antenna Connectors |
| Power Input | Power Port: 9–16V DC; USB-C Port: 5V DC |
| Backup power by UPS | 3000 mAh USB ensures: 24 Hours Standby Usage; 4 Hours Under Line Usage |
| Voice Features | Audio notifications; Call Forwarding (CFU/CFB/CFNRy/CFNRc); Call Hold; Call Waiting; 3-Way Conference; CLIR per Call; Speed Dial 8/30; Call Return; Call Blocking; Do Not Disturb; Caller ID; VMWI; DTMF |
| Communication Protocols | Contact ID; Pulse 4/2; Voice: G.711, G.729, AMR, AMR-WB; Fax: ITU-T.30, V.17, V.29, V.27ter, V.21 |
| Power Consumption | 1.7W (nominal), 3.5W (max.) |
| Dimension | 5.0 x 4.2 x 1.4 inches / 124 x 107 x 35 mm |
| Weight | 0.70 pound / 0.32 kg |
| Operating Temperature | -22° – 149°F / -30° – 65°C |
| Humidity | 15% – 90% (non-condensing) |
| Certifications | FCC, RoHS, UL |
| Package Content (POTS-ADP-LTE-US-T-PRM) | 1x POTS Adapter; 2x LTE Antennas; 1x 12V 2A 4-Pin Power Supply |
| Package Content (POTS-ADP-LTE-US-DC-T-PRM) | 1x POTS Adapter; 2x LTE Antennas; 1x 10ft DC Power Cable |
| SIM Option | 1x Nano-SIM (4FF) |
| Warranty | 1-Year Limited Warranty |
Ordering Information
| Product Code | Region | LTE Bands |
|---|---|---|
| POTS-ADP-LTE-US-T-PRM | North America
US Carrier Certifications:
Verizon, AT&T, T-Mobile, FirstNet | B2, B4, B5, B12, B13, B14, B66, B71 |
| POTS-ADP-LTE-US-DC-T-PRM | North America
US Carrier Certifications:
Verizon, AT&T, T-Mobile, FirstNet | B2, B4, B5, B12, B13, B14, B66, B71 |
Featured Add-on
| Product Code | Description |
|---|---|
| PRM-A-1Y / PCP-A-1Y | PrimeCare A / PrimeCare+ A (1-Year) |
| PRM-A-2Y / PCP-A-2Y | PrimeCare A / PrimeCare+ A (2-Year) |
| PRM-A-4Y / PCP-A-4Y | PrimeCare A / PrimeCare+ A (4-Year) |
| ACW-634 | 10ft DC Power Cable |
| ACW-791 | Peplink 4-Pin Molex to USB-C power cable |
| ACW-DIN-BR1-MINI | DIN Rail Mount Kit |
| ANT-MB-20G-S-B-6 | Mobility 20G – 2x2 MIMO LTE/5G-Ready Cellular Antenna System with GPS (Black) |
| ANT-MB-20G-S-W-6 | Mobility 20G – 2x2 MIMO LTE/5G-Ready Cellular Antenna System with GPS (White) |
