MAX Adapter
Feature Highlights
Instant Configurability
Remote device management with Peplink’s InControl and InTouch eliminates the need for pre-staging configurations and eliminates truck rolls.
eSIM Data Deployments
The MAX Adapter comes with 1GB of Peplink’s eSIM Data Plan. Connect the device to InControl and download your own eSIMs straight out of the box for quick and easy deployments.
Rugged, Reliable Cellular
Metal, ventless case design. Wide temperature operation range: -22° – 149°F / -30° – 65°C
Better Connectivity
Enjoy fast, stable internet with Ethernet and USB-C LAN ports
Flexible Powering Options
Flexible power options with USB-C input, 9–36V DC range, fast bootup, and compatibility with power banks or external batteries.
Featured Solutions
Resources
Specification Details

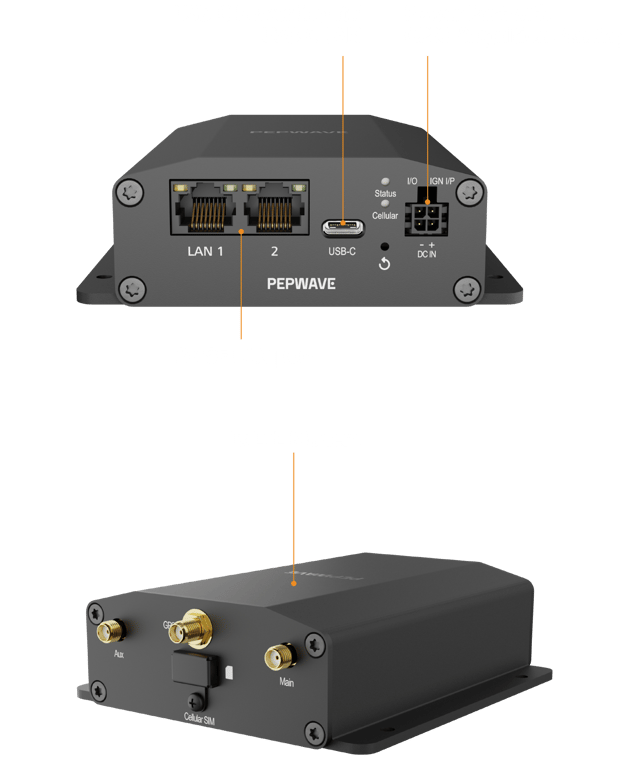

| WAN Interface | 1x Embedded Cellular Modem |
| LAN Interface | 2x 10/100/1000M Ethernet 1x USB-C |
| Feature | GPIO Ignition Sensing |
| Recommended Users | 1–60 |
| Cellular Data Rate (Downlink/Uplink) | CAT-4: 150 Mbps / 50 Mbps |
| Antenna Connectors | 2x SMA Cellular Antenna Connectors 1x SMA GPS Antenna Connector |
| Power Input | AC Adapter: AC Input 100V–240V / DC Output 12V Power Port: 9V – 36V DC USB-C Port: 5V 2A DC |
| Power Consumption | 2.2W (nominal) 5.7W (max.) |
| Dimension | 5.0 x 4.2 x 1.4 inches / 125.7 x 107 x 35 mm |
| Weight | 0.78 pounds / 355 grams |
| Operating Temperature | -22° – 149°F / -30° – 65°C |
| Humidity | 15% – 95% (non-condensing) |
| Certifications | FCC, CE, RoHS EN 61000 Electromagnetic Compatibility |
| Package Content | 1x MAX Adapter 2x LTE Antennas (ACW-234) 1x GPS Active Antenna 1x 12V 2A 4-pin Power Supply |
| SIM Options | Nano-SIM (4FF) Peplink eSIM BYO eSIM (1 profile) |
| Warranty | 1-Year Limited Warranty |
Ordering Information
| Product Code | Region | LTE Bands | 3G Bands |
|---|---|---|---|
| MAX-ADP-LTE-US-T-PRM
Embedded Modems(s):
1 x CAT-4 | North America
US Carrier Certifications: AT&T, T-Mobile,
Verizon, FirstNet | B2, B4, B5, B12, B13, B14, B66, B71 | B2, B4, B5 |
| MAX-ADP-LTE-EU-T-PRM
Embedded Modems(s):
1 x CAT-4 | APAC, EMEA | B1, B3, B7, B8, B20, B28, B38, B40, B41 | B1, B8 |
Featured Add-on
| Product Code | Descriptions |
|---|---|
| PRM-Z-1Y / PCP-Z-1Y | PrimeCare Z / PrimeCare+ Z (1-Year) |
| PRM-Z-2Y / PCP-Z-2Y | PrimeCare Z / PrimeCare+ Z (2-Year) |
| PRM-Z-4Y / PCP-Z-4Y | PrimeCare Z / PrimeCare+ Z (4-Year) |
| ACW-232 | Magnetic GPS Antenna |
| ACW-634 | 10ft / 3m DC Power Cable |
| ACW-643 | Vehicle Cigarette to Molex Power Cable |
| ACW-791 | Peplink 4-Pin Molex to USB-C Power Cable |
| ACW-DIN-BR1-MINI | DIN Rail mount kit |
| ANT-MB-20G-S-B-6 | Mobility 20G - 2x2 MIMO Cellular Antenna System with GPS Receiver (Black) |
| ANT-MB-20G-S-W-6 | Mobility 20G - 2x2 MIMO Cellular Antenna System with GPS Receiver (White) |
| ANT-SLM-22G-S-B-6 | Slim 22G - 2x2 MIMO Cellular and Wi-Fi Antenna System with GPS (Black) |
