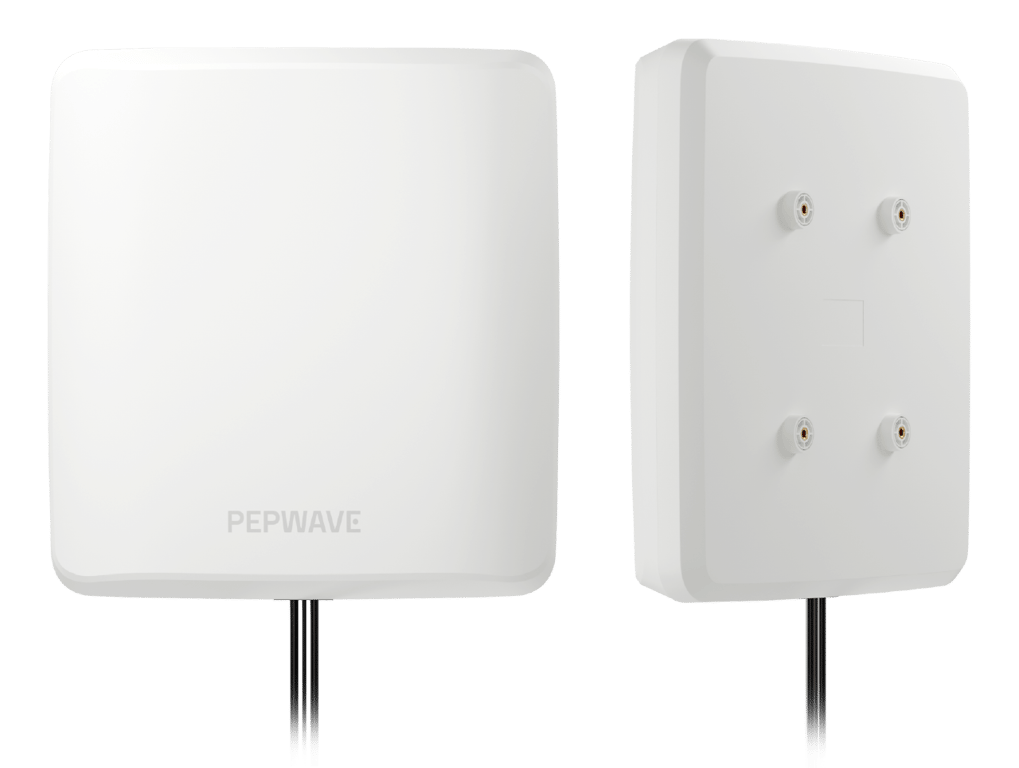

FWA 20G
Feature Highlights
High Gain
Directional high gain 2x2 MIMO antenna
configuration optimised for LTE bands.
Ultra Wide Bandwidth
Wide frequency range supporting LTE
and 5G bands (600-6000MHz).
Robust Design
IP66 rated, durable vandal-proof and
UV-stable housing.
Easy Installation
Simple wall or pole installation for various applications.
Featured Solutions
IoT
Public Safety
Event
Resources
Specification Details
| cellular | |
| Cellular Antenna elements | 2 elements |
| Cellular | |
| Cellular Antenna Peak Gain & Frequencies | 6.4dBi: 617-960MHz 10.2dBi: 1710-2700MHz 7.9dBi: 3400-4200MHz 7.0dBi: 4900-6000MHz |
| Cellular Antenna VSWR | <2.5 over 95% of the band |
| Cellular Antenna Feed power handling | 5W |
| Cellular Antenna Input impedance | 50 Ω |
| Cellular Antenna Polarisation | Linear |
| GPS | |
| GPS Frequency range | 1575-1602MHz |
| GPS Peak gain & Frequency | 1.2dBiC: 1575MHz 2.0dBiC: 1602MHz |
| GPS Antenna VSWR | < 2.0 |
| GPS Antenna Output return loss | -10dB max |
| GPS Antenna Gain: LNA | 29 ±3dB |
| GPS Antenna Operating Voltage | 3.3V |
| GPS Antenna Power consumption | 9 ±2.5mA at 3.3V |
| Cellular Antenna Cable | |
| Cellular Antenna cable type | LMR-200 |
| Cellular Antenna Length | 16ft / 4.8m 2ft / 0.5m |
| Cellular Antenna Loss | 0.33dB/m: 900 MHz 0.49dB/m: 2000 MHz 0.55dB/m: 2500 MHz 0.87dB/m: 5800 MHz |
| Cellular Antenna Diameter | 0.1" / 2.7mm |
| Cellular Antenna Jacket | Half matt PVC, UV resistant |
| Cellular Antenna Termination | SMA male for cable length of 16 ft / 4.8m N-type male for cable length of 2 ft / 0.5m |
| GPS Antenna Cable | |
| GPS Antenna Cable Type | RG-174 |
| GPS Antenna Cable Length | 16ft / 4.8m 2ft / 0.5m |
| GPS Antenna Cable Loss | 3.4 dB/m @ 1000 MHz 4.9 dB/m @ 1800 MHz |
| GPS Antenna Cable Diameter | 0.1" / 2.7mm |
| GPS Antenna Cable Jacket | Half matt PVC, UV resistant |
| GPS Antenna Cable Termination | SMA male, N-type male |
| Mounting | |
| Mounting Supported types | Pole, wall Pole diameter: 1-2'' (25-50mm) |
| Mechanical | |
| Product dimensions | 12.81" x 11.86" x 3.03" 325.3 x 301.3 x 77 mm |
| Packaged dimensions: | 14.17" x 12.20" x 5.71" 360 x 310 x 145 mm |
| Enclosure material | UV stable PC |
| Antenna Color | White |
| Package contents | |
| Package Contents | IoT 20G Pole/Wall mount kit |
| Environmental, compliance | |
| IP rating | IP66 |
| Operating temperature | -40° - 176°F / -40° - 80°C |
| Storage temperature | -40° - 176°F / -40° - 80°C |
| Compliance | RoHS |
Ordering Information
| Product Code | Description |
|---|---|
| ANT-IOT-20G-S-W-16 | 2xLTE/5G, 1xGPS 600-6000MHz, IP66, SMA male, White, 16 ft / 5m |
| ANT-IOT-20G-N-W-2 | 2xLTE/5G, 1xGPS 600-6000MHz, IP66, N-type male, White, 2 ft / 0.5m |
More Information in Datasheet
Technical Drawing
Cellular Antenna Performance
Radiation Pattern
Installation Recommendation
