Antenna MAX S
Feature Highlights
Integration to the MAX

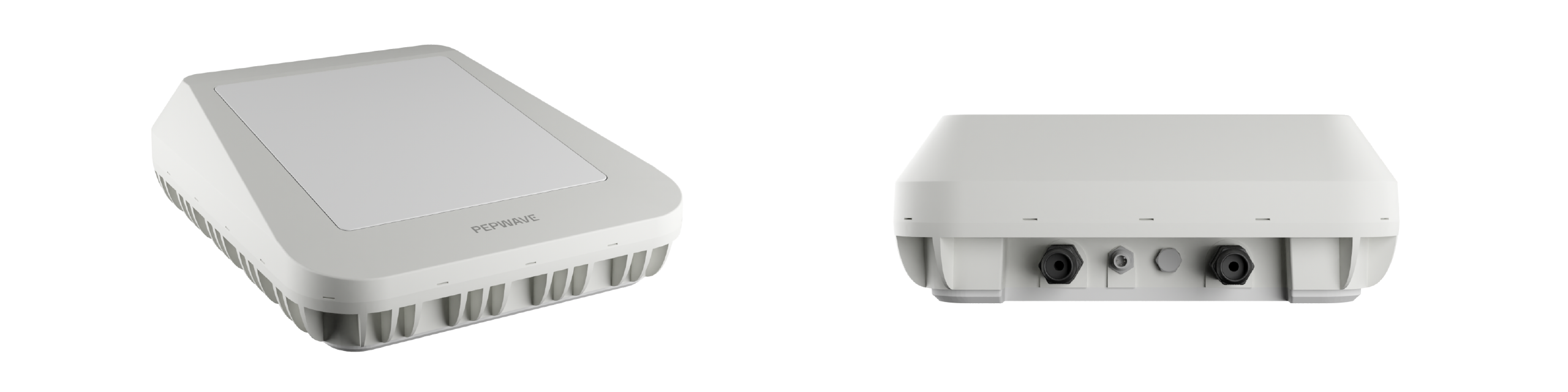

The Antenna MAX S combines satellite through a Starlink Mini and cellular in one enclosure, housing 4x 5G/LTE, Wi-Fi, and GPS antennas for seamless, loss-free connectivity.
Peplink x Starlink
Peplink’s SpeedFusion bonds or fails over between Starlink and 5G for seamless, continuous connectivity, even in obstructed areas.
Durability to the MAX
Engineered for outdoor durability, it features UV- and salt-resistant plastics, a metal base for heat dissipation, and withstands high wind loads.
Convenience to the MAX
Supporting PoE and DC input, the Antenna MAX S lets you securely mount compatible Peplink devices like the BR1 Mini series, Transit Duo Pro, or BR1 Pro 5G with a watertight clasp on vehicles, rooftops, poles, or custom racks.
Value to the MAX
Priced for practicality and designed for performance, the Antenna MAX S offers an all-in-one Starlink and cellular solution saving time, space, and cost without sacrificing reliability.
Featured Solutions
Resources
Specification Details
| Cellular | |
| Antenna Elements | 4 elements |
| Peak Gain & Frequencies | 5.7dBi: 617-960MHz 6.8dBi: 1410-2700MHz 8.9dBi: 3300-4400MHz 7.3dBi: 5000-6000MHz |
| VSWR | < 2.5 over 95% of the band |
| Feed Power Handling | 10W |
| Input Impedance | 50 Ω |
| Polarisation | Linear |
| Connectors | Right angle SMA male |
| Wi-Fi | |
| Antenna Elements | 2 elements |
| Peak Gain & Frequencies | 6.3dBi: 2400-2500MHz 7.4dBi: 5000-6000MHz |
| VSWR | < 3.0 |
| Feed Power Handling | 10W |
| Input Impedance | 50 Ω |
| Polarisation | Linear |
| Connectors | Right angle RP-SMA male |
| GPS | |
| Frequency Range | 1575–1602 MHz |
| Peak Gain | 0.9 dBi @ 1575 MHz 0.8 dBi @ 1602 MHz |
| VSWR | < 2.0 |
| Gain: LNA | 27 ± 3 dB |
| Noise Figure | 2.5 dB |
| Operating Voltage | 3.3 V |
| Power Consumption | 10 ± 3.0 mA |
| Connectors | Right angle SMA male |
| Mounting | |
| Mounting | Surface, Pole, Magnet, Vechicle roof racks or Custom mounts |
| Mechanical | |
| Product Dimensions | 17.6” / 448 mm - Length 14.5” / 368 mm - Width 5.3” / 135 mm - Height |
| Packaged Dimensions | 585 x 456 x 185 mm 23.03” x 17.95” x 7.28” |
| Enclosure Material | Bottom plate - Aluminium Other parts - UV stable PC |
| Package Contents | |
| Package Contents | Antenna MAX S L-Mount Set Power supply/splitter mounting set Router fixation screws 3pcs M25 cable glands 1pcs M25 hole plug 2pcs RJ45 glands 2pcs RJ45 caps 2pcs Hole plug 1pcs DC Cable Connector 1pcs Starlink power cable (35.4” / 900 mm) 1pcs Starlink Ethernet cable (35.4” / 900 mm) 1pcs Double sided 3M adhesive pad 1pcs Ethernet cable (7.87 ” / 200 mm) 1pcs DC cable (3.93” / 100 mm) |
| Environmental, Compliance | |
| IP Rating | IP67 |
| Operating Temperature | -40° – 176°F / -40° – 80°C |
| Storage Temperature | -40° – 176°F / -40° – 80°C |
| Compliance | ROHS, REACH, WEEE |
| Enclosure Flammability | UL 94 V-0 (1.47 mm) |
| UV Resistance | UL 746C (F1 long-term UV exposure) |
| Salt Spray | MIL-STD 810F/ASTM 8117 |
