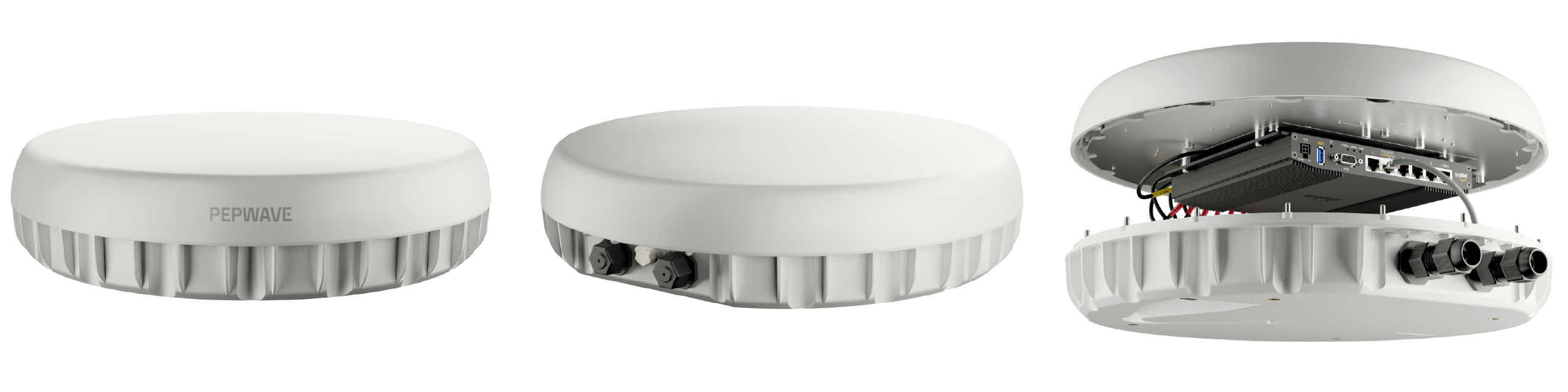

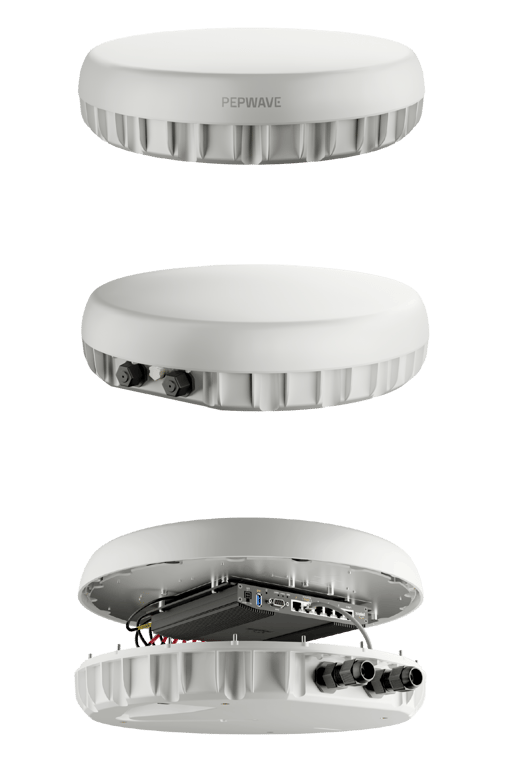

Antenna MAX Duo
Feature Highlights
MAXed Out Synergy
With 8x 5G/LTE, 2x Wi-Fi, and GPS antennas, the Antenna MAX Duo offers reliable dual-modem connectivity in one rugged enclosure to eliminate external cables and reduce signal loss.
MAXed Out Ruggedness
Built to brave the elements, it’s engineered with UV- and salt-resistant materials, an IP67 rating, and MIL-STD 810F testing for durability.
MAXed Out Flexibility
Compatible with Peplink router combinations—1x BR2 Pro, 2x BR1 Pro 5Gs, or BR1 Mini 5G + BR1 Pro 5G—it supports vessels, vehicles, and fixed sites with versatile mounting options including surface, pole, and maritime VSAT mounts.
MAXed Out Savings
Combining high-performance antennas, protection, and dual-modem support, it’s a compact, cost-effective solution for maritime, mobile, and remote deployments.
Featured Solutions
Resources
Specification Details
| Cellular | |
| Antenna Elements | 8 elements |
| Peak Gain & Frequencies | 5.6dBi: 617-960MHz 6.5dBi: 1410-2700MHz 8.1dBi: 3400-4400MHz 7.4dBi: 5000-6000MHz |
| VSWR | < 2.5 over 95% of the band |
| Feed Power Handling | 10W |
| Input Impedance | 50 Ω |
| Polarisation | Linear |
| Connectors | Right angle SMA male |
| Wi-Fi | |
| Antenna Elements | 2 elements |
| Peak Gain & Frequencies | 5.4dBi: 2400-2500MHz 7.4dBi: 5000-6000MHz |
| VSWR | < 2.5 |
| Feed Power Handling | 10W |
| Input Impedance | 50 Ω |
| Polarisation | Linear |
| Connectors | Right angle RP-SMA male |
| GPS | |
| Frequency Range | 1575–1602 MHz |
| Peak Gain | 0.9dBi@1575MHz 0.8dBi@1602MHz |
| VSWR | < 2.0 |
| Gain: LNA | 27 ± 3 dB |
| Noise Figure | 2.5 dB |
| Operating Voltage | 3.3 V |
| Power Consumption | 10 ± 3.0 mA |
| Connectors | Right angle SMA male |
| Mounting | |
| Mounting | Surface, Pole |
| Mechanical | |
| Product Dimensions | 4.82” / 122.5 mm - Height 16.83” / 427.5 mm - Diameter |
| Packaged Dimensions | 21.97" x 25.51" x 16.46" 558 x 648 x 418 mm |
| Enclosure Material | UV stable PC |
| Package Contents | |
| Package Contents | Antenna MAX Duo L-Mount Set Router fixation screws 3pcs RJ45 glands 2pcs RJ45 caps 1pcs Double sided 3M adhesive pad 1pcs Ethernet cable (9.84" / 250mm) 1pcs Ethernet cable (14.96" / 380mm) |
| Environmental, Compliance | |
| IP Rating | IP67 |
| Operating Temperature | -40° – 176°F / -40° – 80°C |
| Storage Temperature | -40° – 176°F / -40° – 80°C |
| Compliance | ROHS, REACH, WEEE |
| Enclosure Flammability | UL 94 V-0 (1.47 mm) |
| UV Resistance | UL 746C (F1 long-term UV exposure) |
| Salt Spray | MIL-STD 810F/ASTM 8117 |
Ordering Information
| Product Code | Description |
|---|---|
| ANT-MAX-DUO | Antenna MAX Duo - 8x LTE/5G, 2x Wi-Fi, 1x GPS 600-6000MHz, IP67, SMA male (Cellular, GPS), RP-SMA male (Wi-Fi), White |
More Information in Datasheet
Technical Drawing
Cellular Antenna Performance
Wi-Fi Antenna Performance
Cellular & Wi-Fi Antenna Performance
Radiation Pattern
Installation Recommendation
Packing List Information
