Antenna MAX
Feature Highlights
Maximum Gain: Up to 6.6dBi

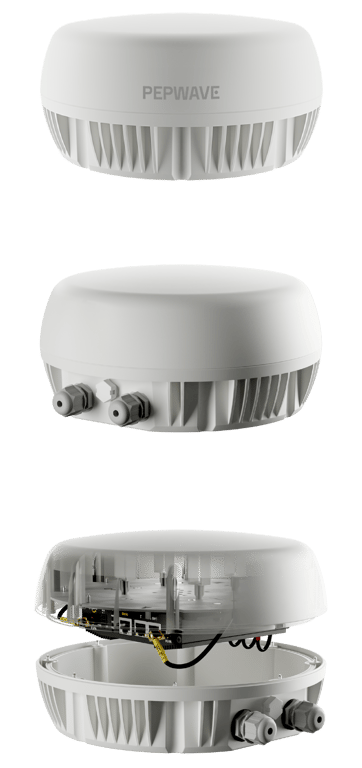

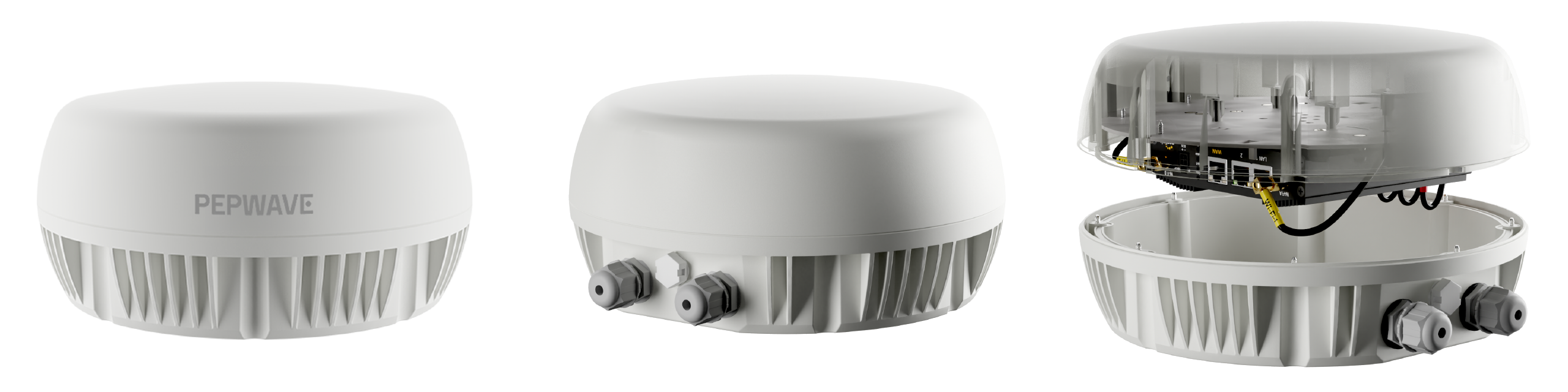

Minimize cable loss by installing your router directly into the antenna enclosure.
Maximum Durability
UV-resistant plastic enclosure resists moisture, water intrusion, salt spray and corrosion.
Maximum Flexibility
Mix-and-match the antenna with many routers including:
- BR1 Mini Series
- Transit Duo Pro
- BR1 Pro 5G / CAT20
- Adapter Series
- AP One Rugged
Maximum Value
Antenna Max is a cost-eective way to get maximum performance from your cellular and 5G routers in outdoor environments.
Featured Solutions
Resources
Specification Details
| Cellular | |
| Antenna Elements | 4 elements |
| Peak Gain & Frequencies | 3.0 dBi: 617–960 MHz 6.2 dBi: 1410–2700 MHz 5.7 dBi: 3400–4400 MHz 6.6 dBi: 5000–6000 MHz |
| VSWR | < 2.5 over 95% of the band |
| Feed Power Handling | 10W |
| Input Impedance | 50 Ω |
| Polarisation | Linear |
| Connectors | Right angle SMA male |
| Wi-Fi | |
| Antenna Elements | 2 elements |
| Peak Gain & Frequencies | 5.4 dBi: 2400–2500 MHz 7.4 dBi: 5000–6000 MHz |
| VSWR | < 2.5 |
| Feed Power Handling | 10W |
| Input Impedance | 50 Ω |
| Polarisation | Linear |
| Connectors | Right angle RP-SMA male |
| GPS | |
| Frequency Range | 1575–1602 MHz |
| Peak Gain | 0.9 dBi @ 1575 MHz 0.8 dBi @ 1602 MHz |
| VSWR | < 2.0 |
| Gain: LNA | 27 ± 3 dB |
| Noise Figure | 2.5 dB |
| Operating Voltage | 3.3 V |
| Power Consumption | 10 ± 3.0 mA |
| Connectors | Right angle SMA male |
| Mounting | |
| Mounting | Surface, wall, pole |
| Mechanical | |
| Product Dimensions | 4.72" / 120 mm - Height 9.84" / 250 mm - Diameter |
| Packaged Dimensions | 13.82" x 11.61" x 5.75" 351 x 295 x 146 mm |
| Enclosure Material | UV stable PC |
| Package Contents | |
| Package Contents | Antenna MAX L-Mount Set Double sided 3M adhesive pad 3pcs Cable Gland 2pcs Hole Plug |
| Environmental, Compliance | |
| IP Rating | IP67 |
| Operating Temperature | -40° – 176°F / -40° – 80°C |
| Storage Temperature | -40° – 176°F / -40° – 80°C |
| Compliance | ROHS, REACH, WEEE |
| Enclosure Flammability | UL 94 V-0 (1.47 mm) |
| UV Resistance | UL 746C (F1 long-term UV exposure) |
| Salt Spray | MIL-STD 810F / ASTM B117 |
Ordering Information
| Product Code | Description |
|---|---|
| ANT-MAX | Antenna MAX - 4x LTE/5G, 2x Wi-Fi, 1x GPS 600–6000 MHz, IP67, SMA male (Cellular, GPS), RP-SMA male (Wi-Fi), White |
More Information in Datasheet
