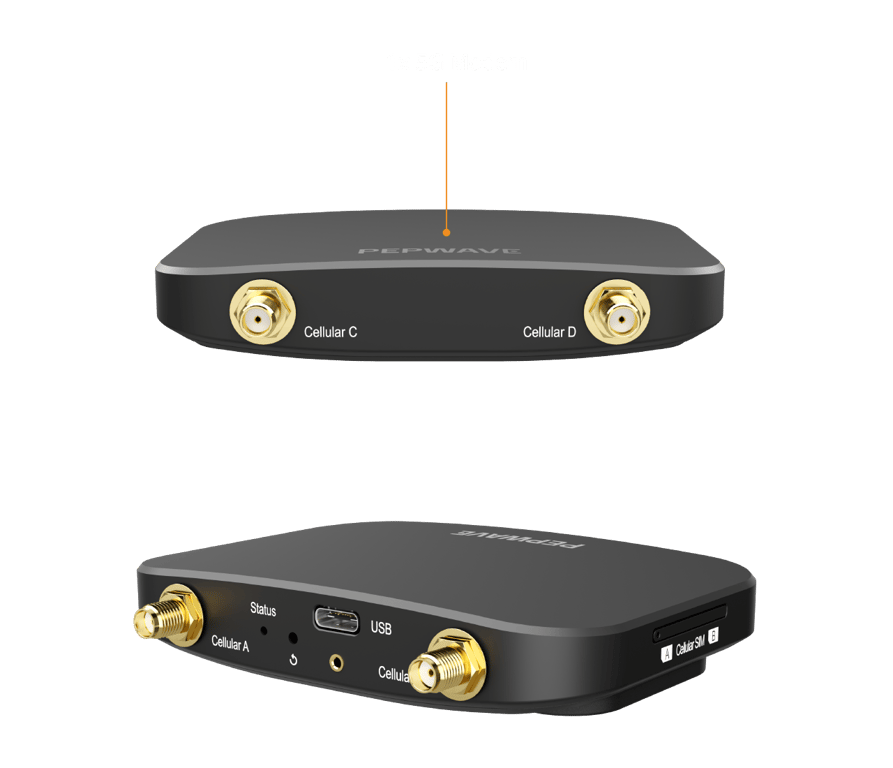

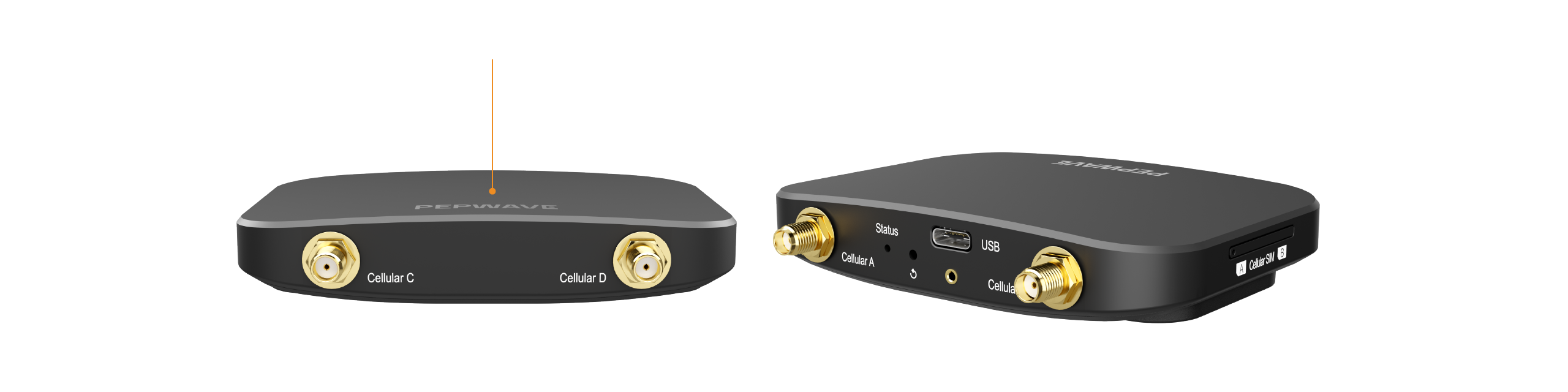

5G Dongle
Feature Highlights
Plug & Play Simplicity
Simply plug the 5G Dongle into any computer to get started, or into a Peplink router for advanced networking options.
LTE/5G Failover Backup
Add a backup cellular connection for uninterrupted connectivity with one small device.
Dual SIM Flexibility (Physical + eSIM)
Easily switch between networks with an extra SIM slot and up to 2 eSIM profiles—ideal for travelers, remote workers, and mobile teams.
Small and Sleek
Its lightweight design offers portability in the palm of your hands.
More than just a USB Dongle
Unlock real-time insights with advanced signal metrics (latency, signal strength, client info) and bandwidth monitoring via local webUI and InControl 2.
Featured Solutions
Resources
Specification Details
| WAN Interface | 1x Embedded Cellular Modem |
| LAN Interface | 1x USB-C |
| Cellular Data Rate (Downlink/Uplink) | 5G: 3.4 GHz / 550 Mbps CAT-19: 1.6 Gbps / 200 Mbps |
| Antenna Connectors | 4x SMA Cellular Antenna Connectors |
| Power Input | USB-C Port: 5V 2A DC |
| Power Consumption | TBD |
| Dimension | 3.9 x 2.8 x 0.7 inches 100 x 71 x 18.4 mm |
| Weight | 0.3 pound / 135 grams |
| Operating Temperature | -40° – 149°F / -40° – 65°C |
| Humidity | 15% – 95% (non-condensing) |
| Certifications | FCC, CE, RoHS |
| Package Content | 1x 5G Dongle 4x LTE/5G Antennas (ACW-235) 1x Ejector Pin |
| SIM Options | Nano-SIM (4FF) Peplink eSIM BYO eSIM (1 profile) RemoteSIM from SIM Injector FusionSIM |
| Warranty | 1-Year Limited Warranty |
Ordering Information
| Product Code | Region | 5G Bands | LTE Bands |
|---|---|---|---|
| DNGL-5GY-PRM
Embedded Modems(s):
1 x 5G | North America
US Carrier Certifications: AT&T, T-Mobile, FirstNet | 5G (NSA & SA) Sub 6Ghz: n2, n5, n7, n12, n13, n14, n25, n26, n29, n30, n38, n41, n48, n66, n70, n71, n77, n78 | B2, B4, B5, B7, B12, B13, B14, B17, B25, B26, B29, B30, B38, B41, B42, B43, B48, B66, B71 |
| DNGL-5GZ-PRM
Embedded Modems(s):
1 x 5G | APAC, EMEA | 5G (NSA & SA) Sub 6Ghz: n1, n3, n7, n38, n40, n41, n71, n77, n78 | B1, B3, B7, B38, B40, B41, B42, B43, B71 |
Featured Add-on
| Product Code | Descriptions |
|---|---|
| TBD | TBD |
